Name: DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: DHD3.5-95mm
Price: 508.50 USD
Availability: InStock

Casa Prodotti Utensili perforatori da roccia

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Dettagli:

Luogo di origine:	Cina
Marca:	MIROC
Certificazione:	ISO
Numero di modello:	DHD3.5-95mm

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Tempi di consegna:	20-30
Capacità di alimentazione:	3000

Contatto

Descrizione di prodotto dettagliata

Utilizzo:	Trivellazione di pozzi, estrazione mineraria, edilizia, estrazione	Forma - Volto:	Piatto o concavo o convesso
Pressione dell'aria:	Alta pressione dell'aria	Tecnologia:	Inserto Termico
Tipo:	Pezzo del martello di DTH	Materiale:	Acciaio in lega
Qualità:	marche superiori 100% della classe del mondo di similarità di qualità	Vantaggi:	Alta qualità e prezzi di fabbrica
Evidenziare:	DTH hammer drill bit for mining , 95mm rock drilling tool , water well drilling rig bit

DHD3.5-95mm DTH Hammer Drill Bit for Mining, Quarry, Water Well Drilling Rig

Product Description

The DHD3.5 drill bit is a common DTH hammer drill bit model, widely used in mining, geological exploration, water well drilling, and construction projects. It connects with the drill pipe through API standard threads to ensure stability and reliability.

Manufactured with high-quality materials and advanced technology, the DHD3.5 drill bit offers extended service life and reduced replacement frequency.

This high air pressure DTH drill bit features our newest design and represents one of the most advanced DTH drill bits available worldwide.

Applications

Ideal for use in mining, energy, metallurgy, geology, coal, water conservancy, chemical industry, and road construction applications.

Our Advantages

Complete solution provider (DTH drill bit, DTH hammer, DTH Drill Rod, and value-added services)
Lower energy consumption with higher impact frequency - drilling speed is 15%-30% higher than other DTH Hammer series
Simple structure with reliable parts, long lifespan, and easy, cost-effective maintenance
Reduced air and oil consumption (approximately 10% lower oil consumption than models with foot valves)
Check valve can be replaced with one featuring a bigger air controlling hole for more efficient cuttings discharge

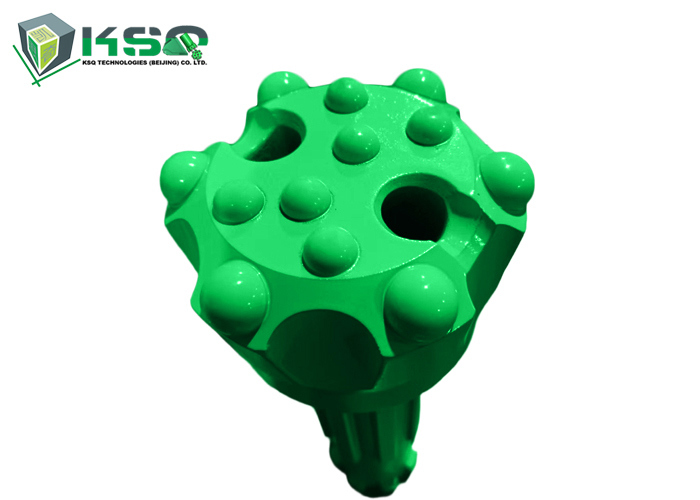

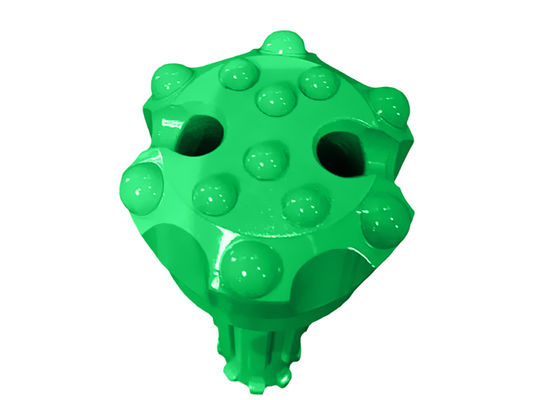

DHD3.5 Ballistic Convex Face Specifications

Bit Diameter (mm)	Bit Diameter (inch)	Buttons (Front)	Buttons (Gauge)	Flushing Holes	Weight (kg)	Part Number
90	3 1/2	4×12, 2×12	8×12	2	4.5	4148301219
95	3 3/4	4×12, 2×12	8×12	2	4.8	4148301220
100	3 7/8	4×13, 2×13	8×13	2	5	4148301221
105	4 1/8	4×14, 2×14	8×14	2	5.5	4148301222
