7 Degree 34mm Taper Button Bit with Tungsten Carbide Buttons for High Performance Rock Drilling

Dettagli:

Marca:	MIROC
Certificazione:	ISO
Numero di modello:	Punta a bottone conica da 7 gradi 34 mm

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Tempi di consegna:	20-30
Capacità di alimentazione:	3000

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Buttoni conici	materiale:	Carburi di tungsteno
applicazione:	Estrazione, perforazione di piccoli fori	Vantaggio:	Alte prestazioni
Colore:	Personalizzato	Utilizzo:	Minerario / cava / tunneling
Tipo di pulsante:	Emisferico/Parabolico/Balistico/Conico
Evidenziare:	7 Degree Taper Button Bit , 34mm Tapered Button Bit , Tungsten Carbide Buttons Drill Bit

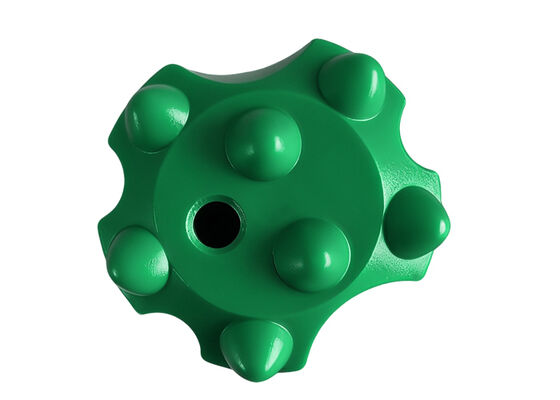

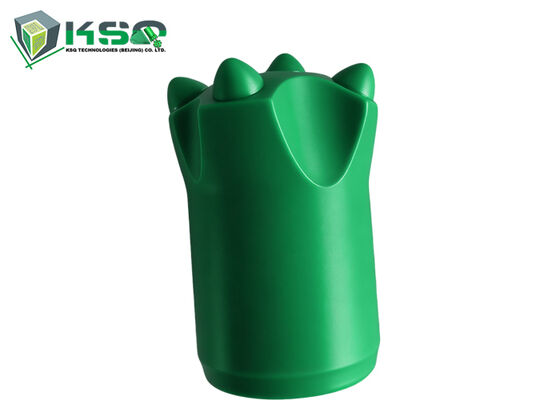

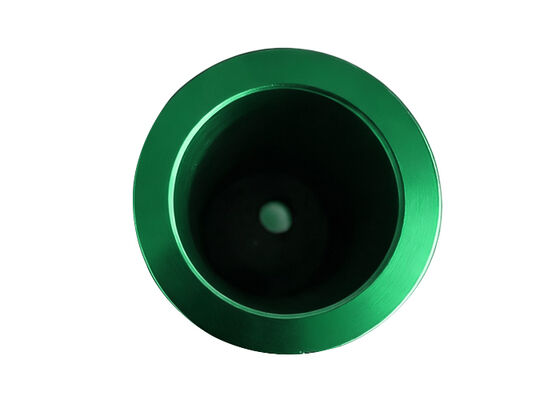

7 Degree 34mm Taper Button Bit

KSQ 7° - 34mm Taper Button Bit - Precision Rock Drilling

Complementing our range of precision reaming tools, KSQ manufactures high-performance taper button bits engineered for direct drilling applications. Designed for speed and durability, these bits are ideal for small-hole drilling in mining, quarrying, and construction projects.

Key Features

Proven Materials: Manufactured from high alloy steel with wear-resistant tungsten carbide buttons, matching the grade specifications of internationally well-known brands.
Optimized Design: The 7° tapered angle ensures a secure fit on the drill rod, while the strategically arranged button layout delivers fast penetration and efficient chip removal.
Superior Manufacturing: Produced under the same rigorous quality control and material standards as our internationally competitive reaming tools, ensuring long service life and consistent performance.

Technical Specifications

Bit Diameter	Buttons and Size (mm)	Flushing Hole	Weight	Part Number
32 mm 1 1/4 inch	2x7 5x7 35°	1 Front 1 Side	0.3 kg	4148300174
33 mm 1 2/7 inch	2x7 5x7 35°	1 Front 1 Side	0.31 kg	4148300175
35 mm 1 3/8 inch	2x7 5x8 35°	1 Front 1 Side	0.36 kg	4148300176
38 mm 1 1/2 inch	2x7 5x9 35°	1 Front 1 Side	0.41 kg	4148300177
41 mm 1 3/5 inch	2x7 5x9 35°	1 Front 1 Side	0.42 kg	4148300178
