Name: High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38
Price: 60.00 USD
Availability: InStock

Casa Prodotti Utensili perforatori da roccia

High Performance T38 64mm Thread Uniface Carbide Button Bit For Rock Mining Blasting Quarry Top Hammer

Dettagli:

Luogo di origine:	Cina
Marca:	MIROC
Certificazione:	ISO
Numero di modello:	T38

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	$60.00
Imballaggi particolari:	casse di legno
Tempi di consegna:	20-30
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	3000

Contatto

Descrizione di prodotto dettagliata

Nome del prodotto:	Punta a bottone per perforatrice da roccia	Caratteristica:	Tasso di perforazione elevato
Forma del carburo:	Cupola, balistico, semibalistico	Tipo di viso:	Piatto, Uniface, centro di lancio
Applicazione:	Perforazione in miniere e cave	imballaggio:	casse di legno
Evidenziare:	T38 carbide button bit , 64mm thread rock drill bit , uniface carbide bit for mining

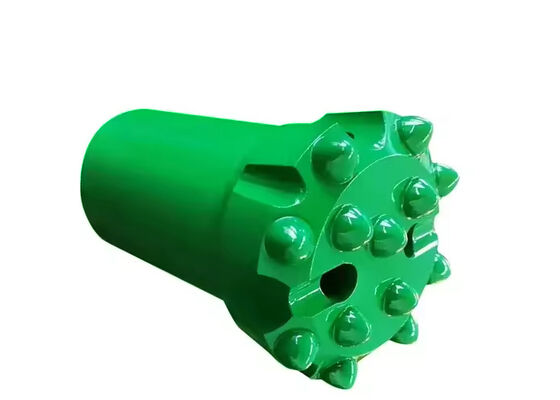

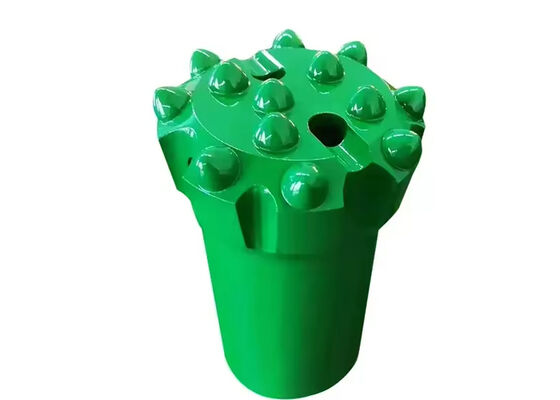

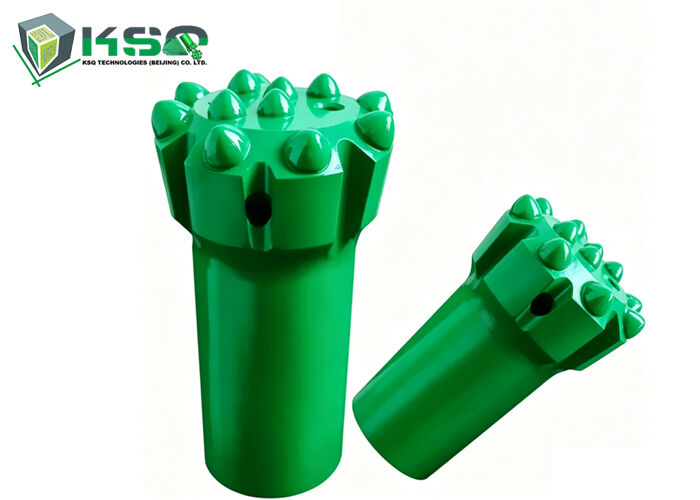

High Performance T38 64mm Thread Uniface Carbide Button Bit

Product Overview

The T38 thread button bit delivers exceptional wear resistance in medium-hard to hard and abrasive rock formations. Engineered with high-grade spherical tungsten carbide inserts, this drilling tool provides strong resistance against carbide fracture for reliable performance in demanding conditions.

Applications

Underground mining operations
Tunneling and quarrying projects
Hard rock formations including granite, basalt, and limestone

Competitive Advantages

High-grade tungsten carbide inserts - Engineered for superior hardness and impact resistance
Low operating cost - Minimal power consumption with easy installation and disassembly
Long service life - Excellent drilling penetration with strong corrosion resistance
Strict quality control - Advanced detection methods and testing equipment ensure consistent high quality

Product Specifications

Type	Specification / Keyword
Thread Type	T38
Diameter	64mm, 70mm, 76mm, 89mm
Button Type	Thread Button Bit, Uniface Button Bit, Carbide Button Bit
Application	Rock Drill Button Bit, Mining Button Bit, Blasting Button Bit, Quarry Button Bit
Tool Type	Top Hammer Bit, Rock Stone Bit
Material	High Manganese Bit, Forged Button Bit
Performance	Wear Resistant Bit, High Performance Bit, High Efficiency Bit, Durable Drill Bit
Customization	Customizable OEM Bit

T38 Thread Button Bit Detailed Specifications

Diameter	Buttons and Size (mm)	Flushing hole	Weight (kg)
64mm (2 1/2")	3×11	3	1.8
64mm (2 1/2")	4×10	2	1.6
64mm (2 1/2")	3×10, 1×10	3	1.7
70mm (2 3/4")	4×11	2	1.9
70mm (2 3/4")	4×10, 1×10	4	1.9
70mm (2 3/4")	3×10, 1×10	3	1.8
76mm (3")	4×11	2	2.4
76mm (3")	5×11	2, 1	2.4
76mm (3")	3×11, 1×11	3, 1	2.6
76mm (3")	4×11, 1×11	4	2.6
76mm (3")	4×11, 1×11	4	2.6
89mm (3 1/2")	4×13	2	3.3
89mm (3 1/2")	5×13	2	3.3
89mm (3 1/2")	6×11	2	3.3
89mm (3 1/2")	3×11, 2×11	3, 1	3.3
89mm (3 1/2")	4×11, 1×11	4	3.3
89mm (3 1/2")	4×13, 1×13	4	3.3
