High Quality QL50 130mm Shank Adaptor Drill Steel Foot Valve Carbide Tungsten Bit For Construction Quarry Top Hammer

Dettagli:

Luogo di origine:	Cina
Marca:	MIROC
Certificazione:	ISO
Numero di modello:	QL50 130 mm

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1
Prezzo:	165
Imballaggi particolari:	casse di legno
Tempi di consegna:	20-30
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union
Capacità di alimentazione:	3000

Contatto

Descrizione di prodotto dettagliata

Modello n.:	QL50-130 mm	Trattamento superficiale:	Dipinte a spruzzo
Materiale:	Acciaio al carbonio e metallo duro	Bit Face:	Sferico, concavo, piatto
Applicazione:	perforazione di pozzi d'acqua, estrazione mineraria, estrazione, costruzione	Martello DTH abbinato:	QL50
Colore:	Requisito del cliente	peso (kg):	15
Vantaggio:	Alte prestazioni	Utilizzo:	Perforazione di roccia mineraria
Evidenziare:	130mm shank adaptor drill bit , tungsten carbide hammer drill bit , construction quarry steel foot valve

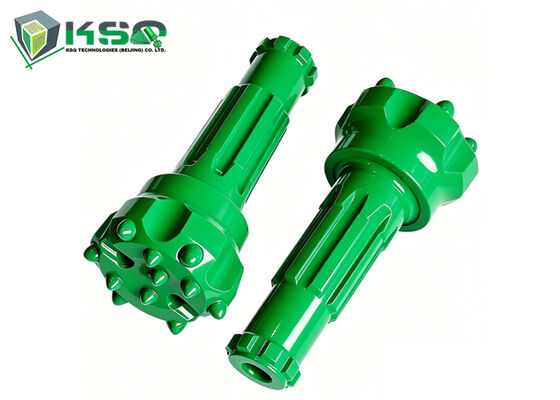

High Quality QL50 130mm Shank Adaptor Drill Steel Foot Valve Carbide Tungsten Bit

Professional DTH bit designed for construction, quarry, and top hammer drilling applications.

DTH Bits for Mining & Blast Hole Drilling

Down-the-Hole (DTH) bits are essential components for mining, quarry drilling, water well drilling, and blast hole applications where high penetration rates and reliable performance are critical.

DTH bits are engineered for efficient rock penetration, extended service life, and stable operation in demanding hard rock environments.

Product Specifications

Bit Dia. (mm)	Bit Dia. (inch)	Front Buttons	Gauge Buttons	Flushing Holes	Weight (kg)	Part Number
Spherical Concave Face
130	5.125	4x14, 3x14	8x16	2	14.5	4148301347
133	5.25	4x14, 3x14	8x16	2	14.5	4148301348
140	5.5	4x14, 4x14	8x16	2	15.5	4148301349
146	5.75	4x14, 4x14	8x16	2	15.6	4148301350
152	6	4x16, 4x16	8x18	2	16.5	4148301351
Ballistic Convex Face
130	5.125	3x14, 4x14	9x16	3	14.5	4148301352
133	5.25	3x14, 4x14	9x16	3	14.5	4148301353
140	5.5	3x16, 4x16	9x16	3	15.5	4148301354
146	5.75	3x16, 4x16	9x16	3	15.6	4148301355
152	6	3x16, 5x16	9x18	3	16.5	4148301356
Spherical Flat Face
130	5.125	7x14	8x16	2	14.5	4148301357
133	5.25	7x14	8x16	2	14.5	4148301358
140	5.5	7x14	7x18	2	15.5	4148301359
140	5.5	8x14	9x16	3	15.5	4148301360
146	5.75	8x14	9x16	3	15.6	4148301361
152	6	8x16	9x18	3	16.5	4148301362

Design & Manufacturing

Materials: High-quality alloy steel with premium tungsten carbide buttons
Durability: Designed to withstand heavy impact drilling and abrasive rock formations
Optimized button arrangement: Improves energy distribution, maintains hole straightness, and reduces vibration

DTH Drilling System Advantages

In DTH systems, the hammer sits directly behind the bit, transferring impact energy efficiently to the rock surface. This design minimizes energy loss and boosts productivity compared to conventional methods.
